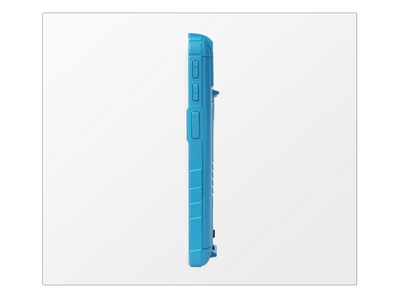

English CILICO Smart Handheld Temperature Reader supports both body and object temp test. It’s with identification (ID card, passport), barcodes, GPS multi functions. Which can check the current health status, identity, track the moving path, analyze the data information, find the close contact etc. to help the epidemic prevention. And also useful for the cold chain logistics and food safety.
| Size | 147×78 ×19mm(L×W×H) |
| Weight | 233g (including battery) |
| Display | 5.0 inch IPS screen Resolution: 1280x720 |
| Touch panel | Capacitive |
| Backlight | LED Backlight |
| Battery | Li-polymer,4000mAh,3.7V Uptime:more than 8 hours Standby time:300 hours |
| Card slot | 1 slot for SIM 2 slots for PSAM (optional) and 1 slot for Micro SD (Maximum 128G) |
| Communication interface | Type-c, OTG |
| Network connections | 4G/3G/2G, Wi-Fi, GPRS, Bluetooth |
| Keyboard | On-screen Keyboard+3 Virtual Keys: Back, Home and Menu |
| NFC | Operating frequency: 13.56MHz Support protocol: MifareClassic (MF1), NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quas:CPU MF3), IsoDep (CPU) Reading distance: 0-5cm (depending on the card type) |
| RFID（Optional） | Operating frequency: US: 902-928MHz EU: 865-868MHz JP：916-921MHz(w LBT) JP：916-923MHz Support protocol: ISO18000-6C/EPC C1G2 Reading distance:0.8m (depending on the label) |
| Security PSAM (optional) | Supporting ISO7816 standard Supporting 2 PSAM cards |
| Sensors | Light sensor, proximity sensor, gravity sensor, Hall sensor (optional) |
| CPU | Octa-core 2.0GHz |
| OS | Android 11 |
| Memory | 3GB RAM+32GB ROM/4GB RAM+64GB ROM |
| Measurement site | Human forehead / object |
| Measuring method | Non-contact / infrared |
| Measuring distance | 0~6cm |
| Temperature measurement time | ≤1s |
| Measuring range | Human body mode: 32 ~ 42.9 ℃ Object mode: 0-100℃ |
| Resolution | 0.01°C |
| Measurement accuracy | Human body mode: 32 ~ 42 ℃ ±0.2℃ other range ±0.3℃ Object mode: ±1.0℃ |
| Clinical reusable | ±0.3℃ |
| Operating environment | Temperature 0 ~ 40 ℃, relative humidity ≤85% Rh, air pressure 60-110Kpa |
| 2D Scanner | Zebra/Honeywell scanning engine |
| 1D Symbologies | UPC/EAN,Bookland EAN,UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,Korean 3 of 5,Matrix 2 of 5,Inverse 1D,GS1 DataBar,Composite Codes. etc |
| 2D Symbologies | PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR,QR inverse,Aztec,Aztec Inverse, Postal Codes: US Postnet, US Planet,UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code,USPS 4CB/One/Intelligent Mail,UPS FICS Pstal. etc |
| WWAN | GSM/GPRS/WCDMA/CDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
| Wi-Fi | Wi-Fi frequency: 2.4GHz & 5GHz Wi-Fi protocol: 802.11a/b/g/n/ac |
| GPS | GPS/BDS/GLONASS |
| Bluetooth | Bluetooth 5.0 |
| Name | Size | Download |
|---|---|---|
| CILICO Smart Handheld Temperature Reader Datasheet.pdf | 313KB | Download |
